High performance bike that offers superior power, handling, safety, features

Specifications

Engine

  • Bore - 67 mm
  • Clutch Type -Wet, Multiplate
  • Compression Ratio - 9.7± 1:1
  • Cooling - Force air cooled and oil cooled
  • Engine Capacity -236.2 cc
  • Idling rpm - 1400 ± 300
  • Max Power - 8.25 kW @4750 ± 250 rpm
  • Max Speed -62 km/h
  • Max Torque - 17.55 Nm @ 3250± 250 rpm
  • Stroke - 67 mm
  • Transmission Type - Manual
  • Engine Type - Four stroke, Air and Oil cooled, Twin Spark plug, S.I. Engine

Brakes & Tyres

  • Front & Rear Brakes Type - Hydraulically actuated brake shoes – Leading & Trailing Type
  • Parking Brake Type - Mechanical parking brake – actuated on rear wheels

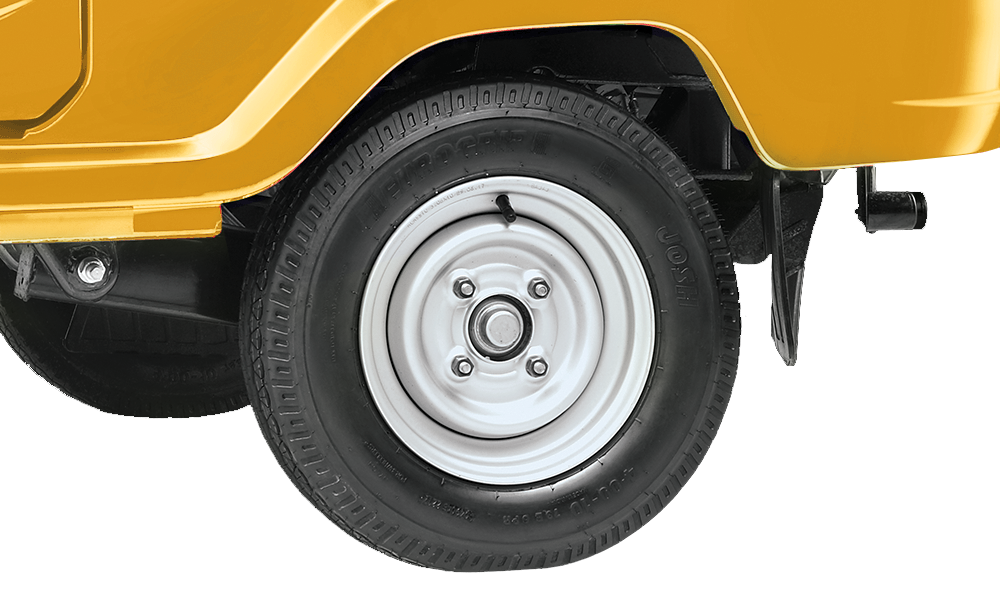

  • Front Tyres - 4.00 - 10, 6 PR
  • Rear Tyres - 4.00 - 10, 6 PR
  • Front and Rear Brakes - Pedal operated by right foot
  • Parking Brakes - Hand operated

Electricals

  • Battery -12V 32AH
  • Head Lamps - 35/35W (HS1)
  • Horn - Low Tone (350 ± 30 Hz)
  • Pilot Lamp - 3W / 5W
  • Reverse Lamps - 10W
  • System -12V DC
  • Tail Lamps - 5W / 21W
  • Turn Signal Lamp - 10W
  • Wiper System - Wiping angle - 90° ± 5° Single piece windshield

Vehicle

  • Chasis Frame - Monocoque chassis with central beam and cross member welded
  • Fuel Tank -20.6 L
  • Ground Clearance -200 mm
  • Kerb Weight -456 Kgs
  • Length x Width x Height -2858 mm x 1350 mm x 1780 mm
  • Max. gross weight - 786 Kgs
  • Suspension Front - Fork with Leading arms and Anti-dive link, twin hydraulic shock absorbers and helical springs
  • Suspension Rear - Independently sprung rear wheels by trailing arms with helical springs and hydraulic shock absorbers
  • Turning circle Radius - 2880 mm
  • Wheel Base -2000 mm
  • Wheel Track - 1150 mm
